Wallace® Single Lumen Oocyte Recovery Systems

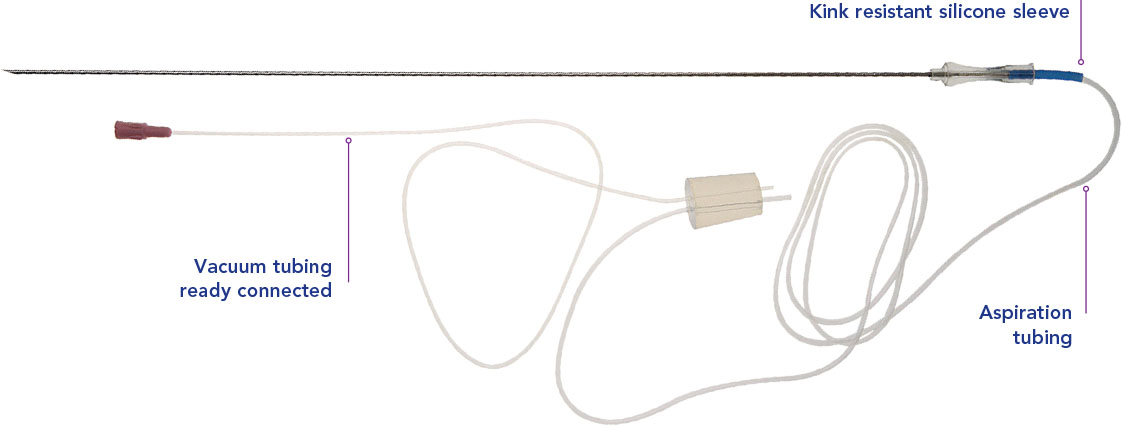

The single lumen needle range features a tri-faceted tip ensuring optimal sharpness and accuracy during placement. The needle is available as a stand alone unit and with a variety of tubing lengths to suit clinical preference.

Key Features




Key Documents

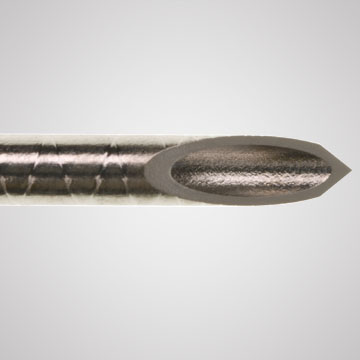

  • Triple ground needle tip for optimum sharpness

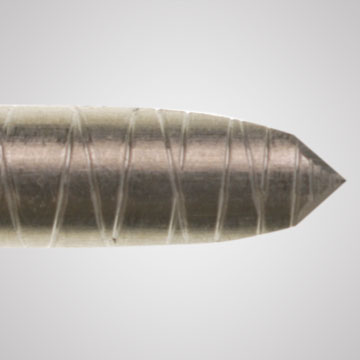

  • Echo markings at needle tip

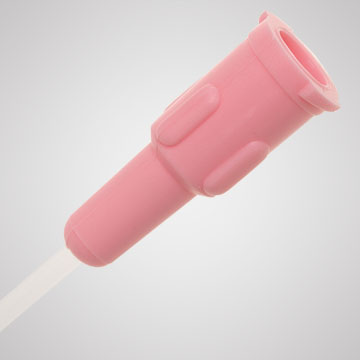

  • Luer lock compatible connections

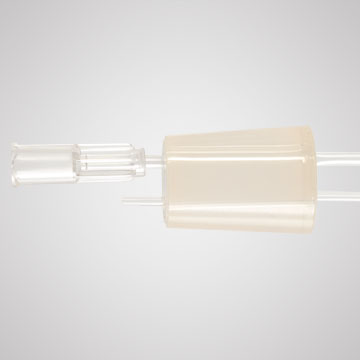

  • Available with luer lock at bung for intermittent flushing

Product Specifications
Wallace Single Lumen Needle 16g 17g 18g
Inner catheter outer diameter 1.52mm OD 1.52mm OD 16g
Needle ID 1.24mm 1mm 0.95mmg
Needle OD 1.7mm 1.42mm 1.25mm
Volume of needle not including hub 0.435ml 0.283ml 0.255ml
Volume per cm length of needle 0.012ml 0.008ml 0.007ml
Length of echogenic markings 22mm 22mm 22mm
Aspiration tubing ID 1.52mm 1.31mm 1.14mm
Order Codes
Reference Description Size
ON1633 Oocyte Recovery Needle 33cm x 16g (not available in the US) Box of 10
ON1733  Oocyte Recovery Needle 33cm x 17g (not available in the US) Box of 10
ONS1633  Oocyte Recovery Set Single Lumen 16g x 33cm echo tip needle fitted with 950mm aspiration tubing Box of 10
ONS1633-500  Oocyte Recovery Set Single Lumen 16g x 33cm echo tip needle fitted with 500mm aspiration tubing Box of 10
ONS1633-750  Oocyte Recovery Set Single Lumen 16g x 33cm echo tip needle fitted with 750mm aspiration tubing Box of 10
ONS1633LL  Oocyte Recovery Set Single Lumen 16g x 33cm echo tip needle fitted with 950mm aspiration tube and a luer lock Box of 10
ONS1633LL-500  Oocyte Recovery Set Single Lumen 16g x 33cm echo tip needle fitted with 500mm aspiration tube and a luer lock Box of 10
ONS1633LL-750  Oocyte Recovery Set Single Lumen 16g x 33cm echo tip needle fitted with 750mm aspiration tube and a luer lock Box of 10
ONS1733  Oocyte Recovery Set Single Lumen 17g x 33cm echo tip needle fitted with 950mm aspiration tubing Box of 10
ONS1733-500  Oocyte Recovery Set Single Lumen 17g x 33cm echo tip needle fitted with 500mm aspiration tubing Box of 10
ONS1733-750  Oocyte Recovery Set Single Lumen 17g x 33cm echo tip needle fitted with 750mm aspiration tubing Box of 10
ONS1733LL  Oocyte Recovery Set Single Lumen 17g x 33cm echo tip needle fitted with 950mm aspiration tube and a luer lock Box of 10
ONS1733LL-500  Oocyte Recovery Set Single Lumen 17g x 33cm echo tip needle fitted with 500mm aspiration tube and a luer lock Box of 10
ONS1733LL-750  Oocyte Recovery Set Single Lumen 17g x 33cm echo tip needle fitted with 750mm aspiration tube and a luer lock Box of 10
ONS1833  Oocyte Recovery Set Single Lumen 18g x 33cm echo tip needle fitted with 950mm aspiration tubing Box of 10
ONS1833-500  Oocyte Recovery Set Single Lumen 18g x 33cm echo tip needle fitted with 500mm aspiration tubing Box of 10
ONS1833-750  Oocyte Recovery Set Single Lumen 18g x 33cm echo tip needle fitted with 750mm aspiration tubing Box of 10
ONS1833LL  Oocyte Recovery Set Single Lumen 18g x 33cm echo tip needle fitted with 950mm aspiration tube and a luer lock Box of 10
ONS1833LL-500  Oocyte Recovery Set Single Lumen 18g x 33cm echo tip needle fitted with 500mm aspiration tube and a luer lock Box of 10
ONS1833LL-750  Oocyte Recovery Set Single Lumen 18g x 33cm echo tip needle fitted with 750mm aspiration tube and a luer lock Box of 10
