Wallace® Classic

Embryo Transfer Catheters

Our Classic range offers a soft-profiled tip associated with some of the highest pregnancy rates across the world

Key Features

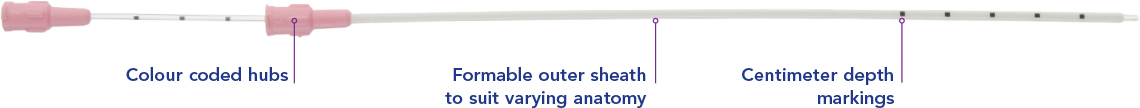

Soft material and smooth tip minimizes trauma and maximizes success rates
Formable outer sheath to suit different patient anatomies
Centimeter markings to show outer sheath depth and inner lumen protrusion for confidence of placement within the uterus
Trial transfer catheters allow for confident positioning of the outer sheath before introducing the embryo loaded inner. Clinicians have found this technique to have a positive impact on pregnancy rates
The Classic range is fully compatible with the Sure View range

Key Documents

Instruction for Use

Product Specifications

Inner catheter inner diameter	0.76mm ID
Inner catheter outer diameter	1.52mm OD
Outer sheath outer diameter	2.3mm OD
Volume of catheter not including hub (18cm catheter)	0.081ml (81µl)
Volume of catheter not including hub (23cm catheter)	0.104ml (104µl)
Volume per cm length of catheter	0.0045ml (4.5µl)
Suggested loading volume	0.5 to 1cm = 2.25 to 4.5µl
Stylet OD	1.52mm OD
Stylet protrusion from outer sheath	2.0mm

Order Codes

Reference	Description
1816	Soft 18cm Classic – Quantity: 10
1816N	Soft 23cm Classic – Quantity: 10
1816S	Intermediate 18cm Classic – Quantity: 10
2316	Intermediate 23cm Classic – Quantity: 10
